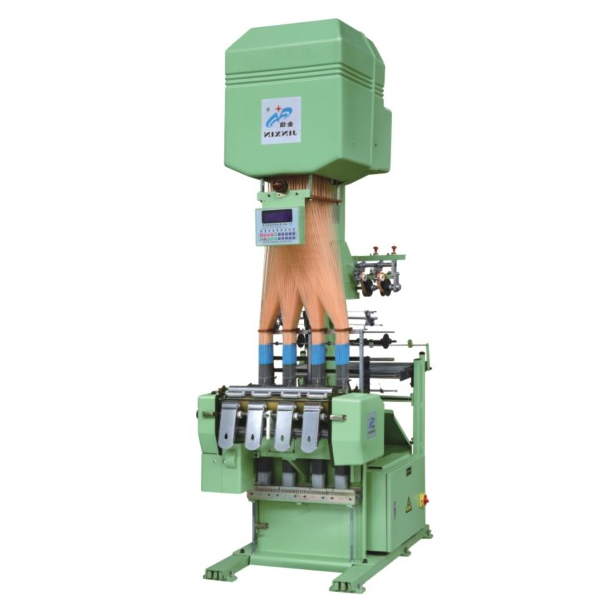

KTNF53-4/66-320 Jacquard Loom(Narrow Fabric Weaving System)
Electronic jacquard loom, ribbon weaving loom

KTNF53-4/66-320 Jacquard Loom(Narrow Fabric Weaving System)

Comtech provides the customized narrow fabric weaving machine according to the number of tapes, width and hook required by the customer.

Model 8/27 6/42 4/66
No. of Hooks 128-384 128-384 128-384
Tape Lines 8 6 4
Reed Width 27mm 42mm 66mm
Max. Weaving Width 25mm 40mm 62mm
No. of Heald Frame 12 12 12
Repeat Length 1:8/16-32 1:8/16-32 1:8/16-32
RPM 1250r/min 1250r/min 1250r/min
Machine Width 980mm 980mm 980mm
Max. Machine Height 2600mm 2600mm 2600mm
Min. Machine Length 3000mm 3000mm 3000mm
Net Weight 890KG 890KG 890KG

Narrow fabric loom is suitable for light to medium-weight elastic and non-elastic narrow fabrics. The weaving machine is designed with 53cm in width, and can weave 4 tapes at one time, each with max. width of 66mm and hooks of 320.

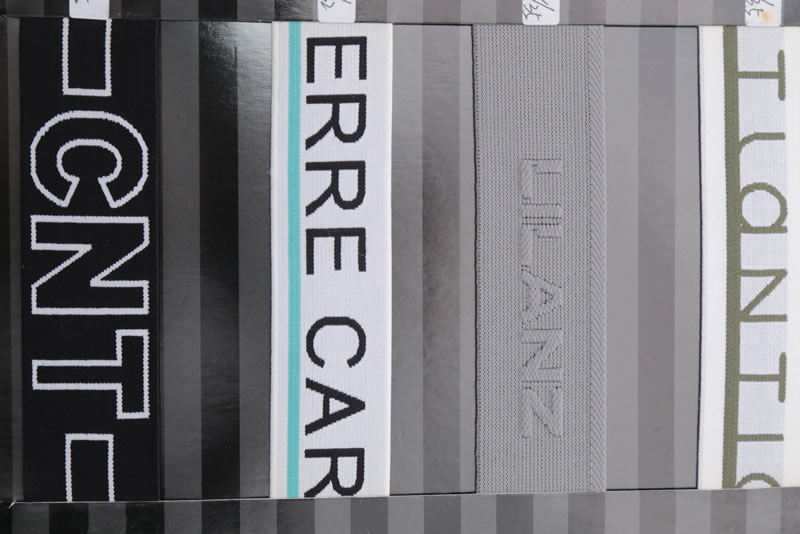

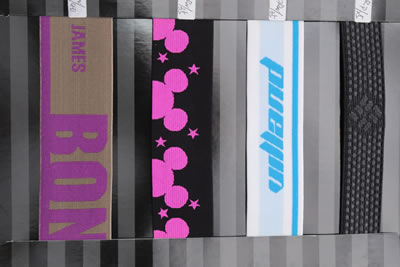

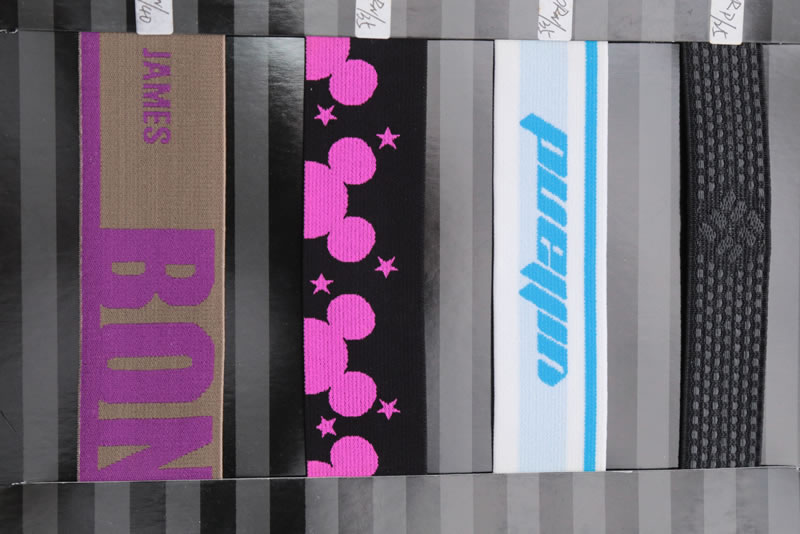

The KTNF53-4/66-320 jacquard loom is a specialized piece of equipment for manufacturing narrow fabrics in a variety of jacquard patterns, including elastic or non-elastic woven tapes with wide applications in underwear lace bands, elastic tapes, curtain tapes, backpack belts, headbands, and more. The jacquard pattern is created by 320 warp threads and 12 heald frames.

After more than 30 years of experience in weaving machine parts processing, Comtech is an expert on ribbon weaving machine structure and principles, and has mastered the precise manufacturing technology. We control the accuracy of each component, and ensure all combinations run smoothly. Due to this, our computerized jacquard loom maintains a stable operation status at higher production speeds, and avoids yarn jumping, as well as improves the output and finished product rate.

  • KTNFM53-4/66-192 Jacquard Loom(Narrow Fabric Weaving System)
  • KTNFM53-4/66-192 Jacquard Loom(Narrow Fabric Weaving System)

Get in Touch

We are the professional narrow fabric machinery provider with a thorough understanding of the demands of customers in the industry. All parts applied in our weaving machines have been processed in-house. In addition to weaving looms configured to standard requirements, we can provide you with equipment adjusted and configured to your requirements. We can even create completely customized ribbon weaving machines based on your products as well as batches of custom parts for narrow fabric weaving systems.
