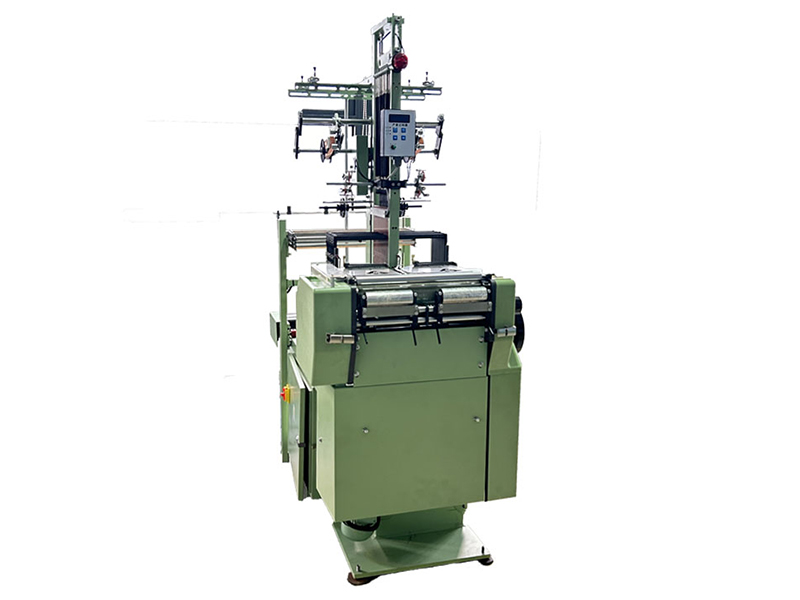

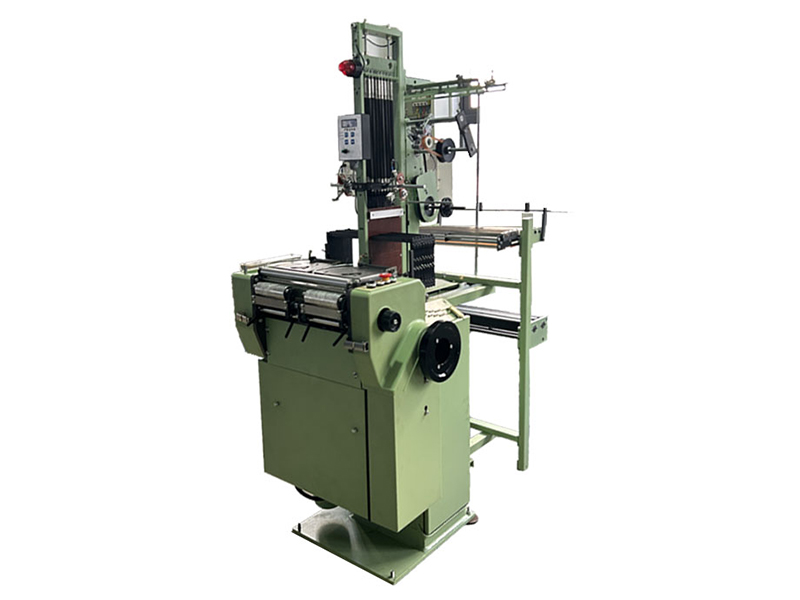

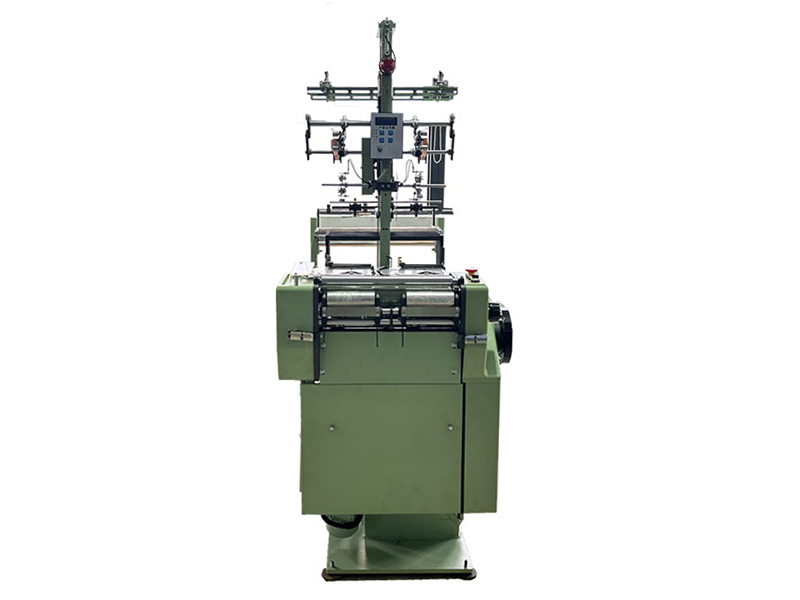

KTNFB78-2/130 Narrow Fabric Needle Loom

KTNFB78-2/130 Narrow Fabric Needle Loom
KTNFB78-2/130 Narrow Fabric Needle Loom KTNFB78-2/130 Narrow Fabric Needle Loom KTNFB78-2/130 Narrow Fabric Needle Loom

The high-speed narrow fabric needle loom is engineered for precision and efficiency in producing elastic and non-elastic woven tapes. Operating at speeds of up to 1200r/min, it is ideal for manufacturing a variety of products, including underwear lace bands, elastic ribbons, curtain tapes, ribbons, hook-and-loop fasteners, zipper webbings, and shoelaces. With customizable specifications, it offers adaptability and versatility to diverse weaving applications.

Specifications
Model KTNFB78-2/130
Tape Lines 2
Reed Width 130mm
Max. Weaving Width 130mm
Number of Heald Frame 20
Chain Repeat 1:8/16-48
Motor 1.5HP
Speed 1200r/min
Machine Width 980mm
Details
  • KTNFB78-2/130 Narrow Fabric Needle Loom

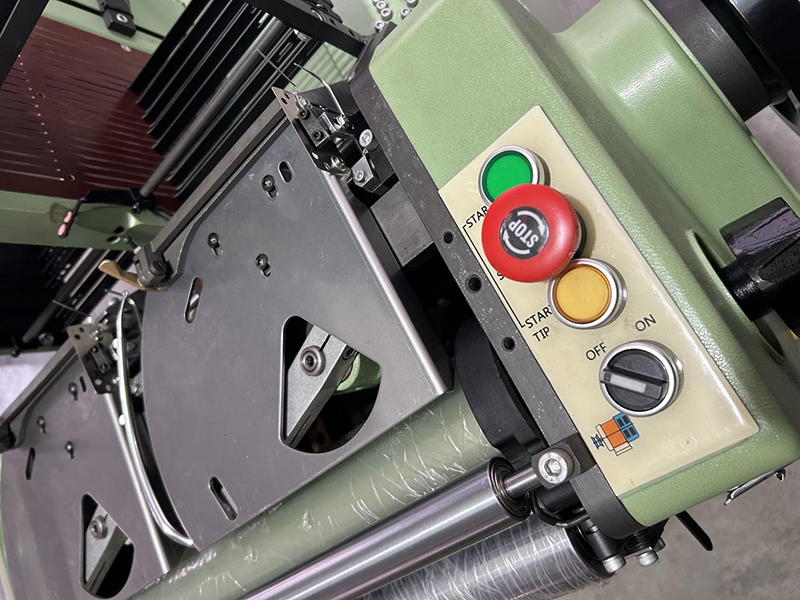

    Control panel
  • KTNFB78-2/130 Narrow Fabric Needle Loom

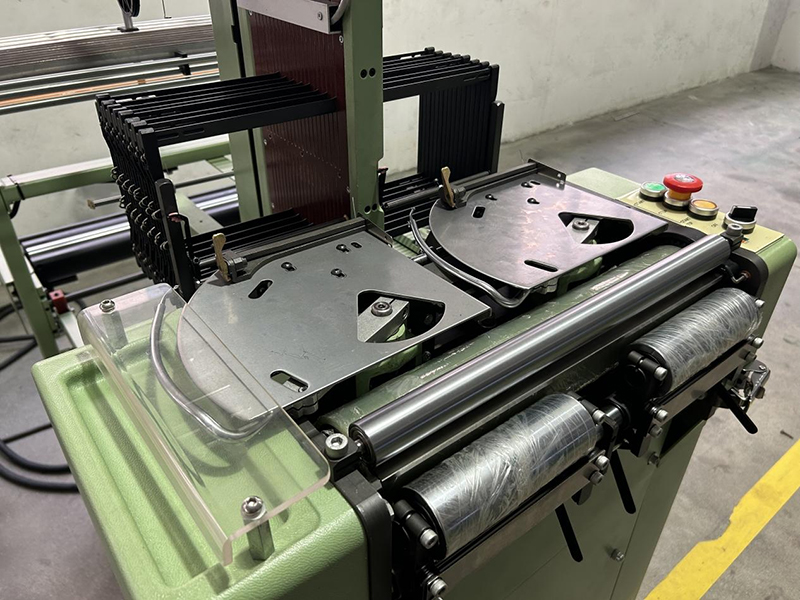

    Steel reeds and tape width
Features
  • The needle loom adopts a latch-type pattern chain ensuring precise operation, durability, and easy disassembly. It operates with low noise level for high-speed functionality.
  • Equipped with an open-style weaving frame and an upper thread tension mechanism, designed to reduce stress on the tension frame and cutter, enabling stable and durable high-speed weaving performance.
  • Utilizing a belt-driven mechanism, the needle loom reduces operational stress and eliminates the wear and tear issues commonly associated with worm gear drives. This enhances flexibility, simplifies weft density adjustments, and ensures easier maintenance.
  • Manufactured with precision, the components are compatible with other machine models, ensuring easy maintenance and quick adjustment. The fast supply of standardized parts makes assembly and adjustments effortless.
  • A recirculated oil supply device lubricates the cutter and pattern chain, enhancing their longevity and performance efficiency.
  • Offers both fast (normal working speed) and slow (adjustment mode) settings to accommodate different operational requirements.
  • Available in double hook single needle and double hook multi-needle configurations, suitable for producing a wide range of woven items like underwear tapes, shoulder tapes, and curtain tapes and other applications.
  • The weaving machine operates under a PC-controlled circuit, enabling automated features such as motor start and stop, thread breakage detection, yield calculation, and automatic return to the home position after stopping, ensuring efficiency and precision during operation.

Get in Touch

We are the professional narrow fabric machinery provider with a thorough understanding of the demands of customers in the industry. All parts applied in our weaving machines have been processed in-house. In addition to weaving looms configured to standard requirements, we can provide you with equipment adjusted and configured to your requirements. We can even create completely customized ribbon weaving machines based on your products as well as batches of custom parts for narrow fabric weaving systems.
