Tape Festooning Machine
Semi-automatic packing machine for handling elastic and rigid tapes

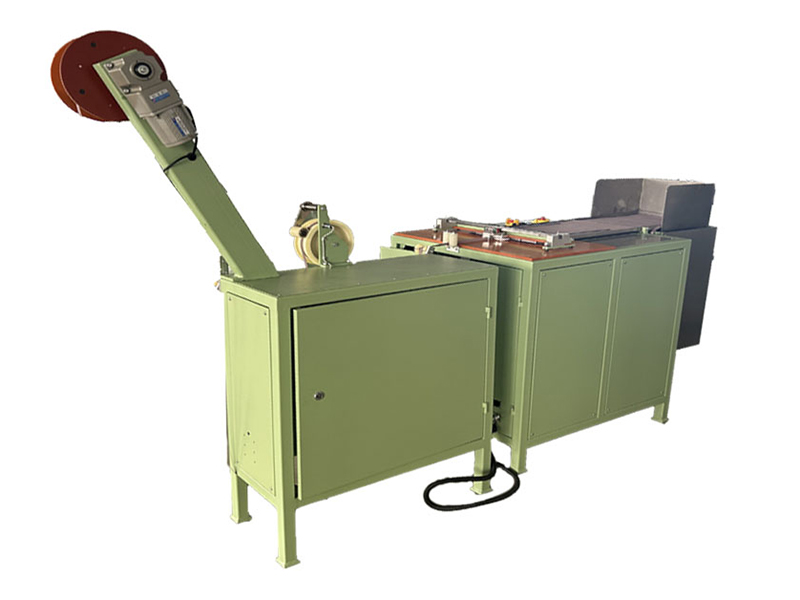

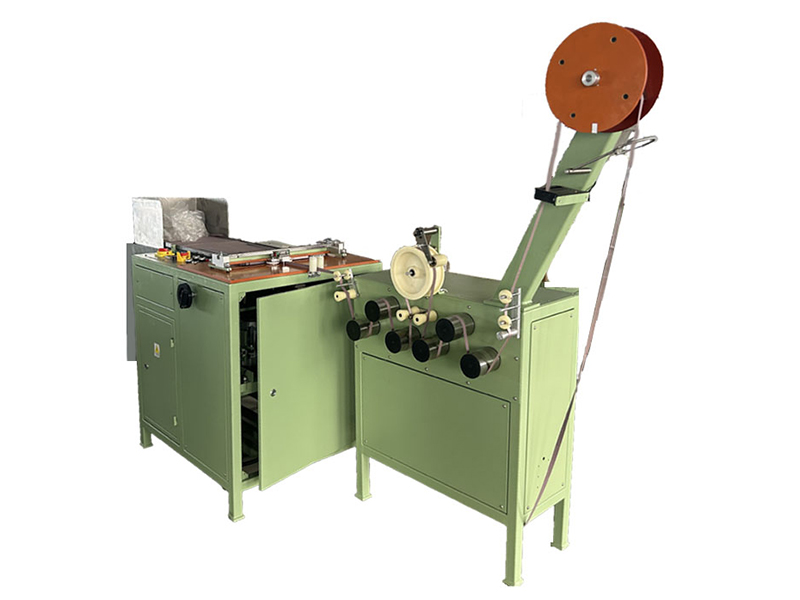

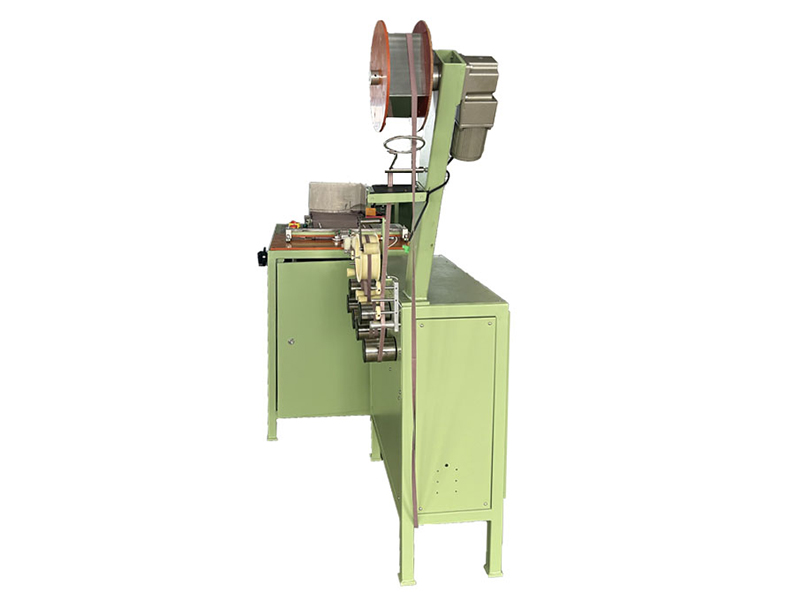

Tape Festooning Machine
Tape Festooning Machine Tape Festooning Machine Tape Festooning Machine

The semi-automatic high-speed festooning machine is used in the narrow fabric industry. It consists of a main unit and a tape feeding system and is suitable for packaging elastic and non-elastic tapes ranging from 4mm to 65mm in width. It provides an efficient and reliable solution for high-speed packaging of various tape products. It is equipped with a needle inspection stop function, which automatically halts operation when staples are detected during tape feeding, ensuring smooth and safe performance.

Packaging
  • Tape Festooning Machine
  • Tape Festooning Machine
  • Tape Festooning Machine
Details
  • Tape Festooning Machine

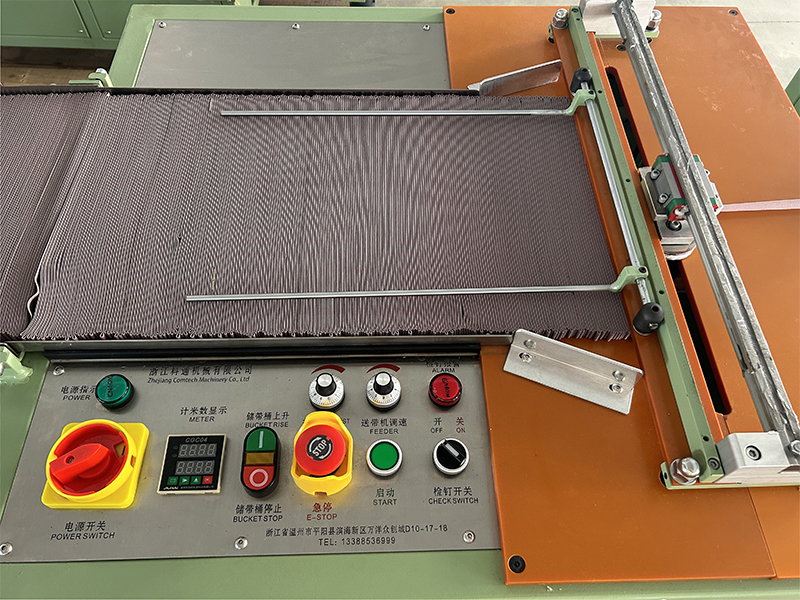

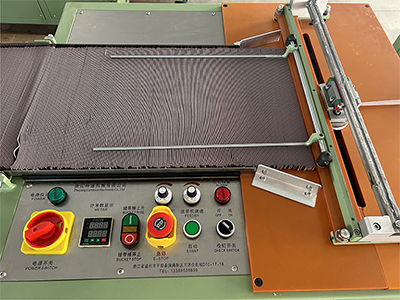

    Control panel interface
  • Tape Festooning Machine

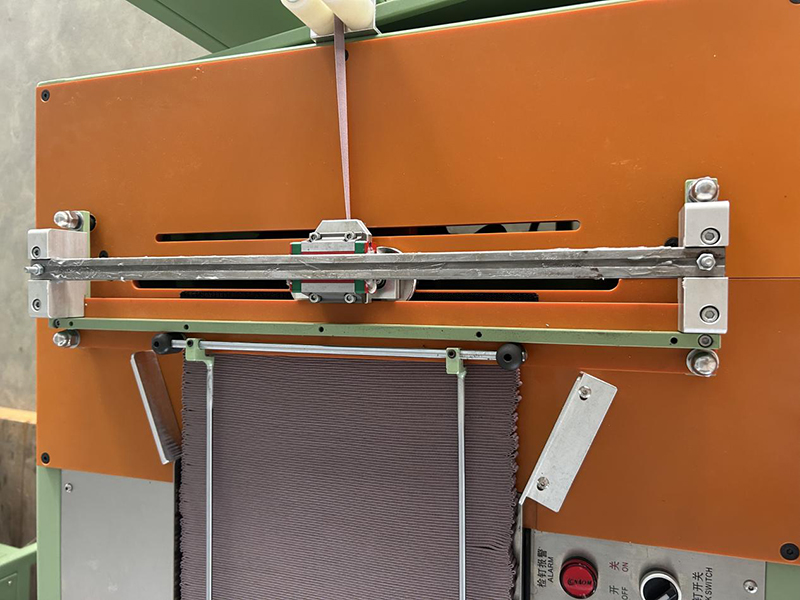

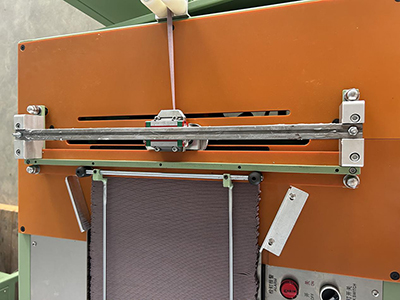

    Tape arrangement area
Specifications
Tape Width 4-65mm
Packaging Size 35×35×25cm
Packaging Speed 125m/min
Applicable Materials Elastic or non-elastic tapes
Power Supply 220V 50/60Hz
Total Power 0.82kW
Dimensions Total Height: 168cm
Main machine size: W85cm×L138cm×H102cm
Feeder size: L120cm×W45cm
Machine Weight 284kg
Features
  • Front and rear frequency control systems allow separate speed adjustments for both ends of the machine. The adjustable take-up disc and removable cover plate ensure ease of use.
  • Equipped with a tape jam shutdown protection feature, that halts the operation automatically in case of tape jams, enhancing safety and reliability.
  • Integrated metal detector stops the machine automatically upon detecting staples, improving safety.
  • Features an accurate meter counter that tracks production output with precision to enhance operational efficiency.
  • A geared motor ensures consistent tape output at a fixed speed, simplifying manual packaging and reducing operator fatigue.
