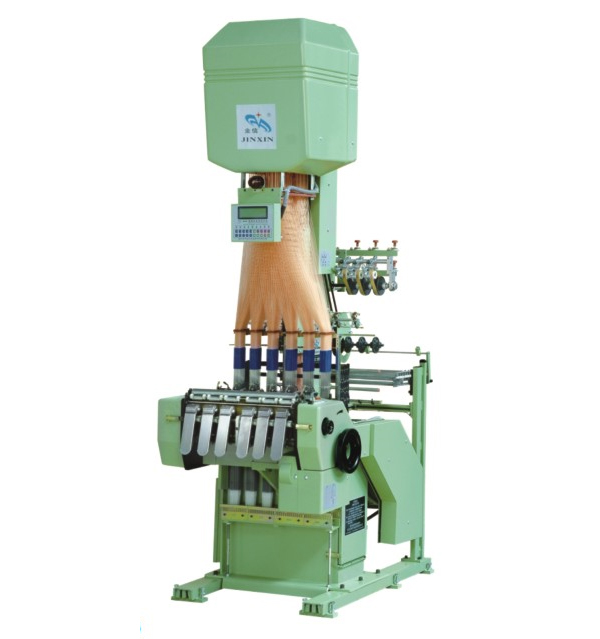

KTNF53-6/42-384 Jacquard Loom(Narrow Fabric Weaving System)
Computerized jacquard loom, ribbon weaving machine
Comtech provides the customized narrow fabric weaving machine according to the number of tapes, width and hook required by the customer.
| Model | 8/27 | 6/42 | 4/66 |
| No. of Hooks | 128-192 | 192-320 | 192-384 |
| Tape Lines | 8 | 6 | 4 |
| Reed Width | 27mm | 42mm | 66mm |
| Max. Weaving Width | 25mm | 40mm | 62mm |
| No. of Heald Frame | 12 | 12 | 12 |
| Repeat Length | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Machine Width | 980mm | 980mm | 980mm |
| Max. Machine Height | 2600mm | 2600mm | 2600mm |
| Min. Machine Length | 3000mm | 3000mm | 3000mm |
| Net Weight | 890KG | 890KG | 890KG |
Narrow fabric loom is suitable for light to medium-weight elastic and non-elastic narrow fabrics. The weaving machine is designed with 53cm in width, and can weave 4 tapes at one time, each with max. width of 66mm and hooks of 384.
The KTNF53-6/42-384 jacquard loom is an economical, computerized jacquard loom, and is suitable for weaving elastic or non-elastic narrow fabrics with simple patterns. The pattern is created by 192 warp yarns and 12 heald frames, and the open heald frame increases the running stability and improves the surface smoothness of finished textiles.
After more than 30 years of experience in weaving machine parts processing, Comtech is an expert on ribbon weaving machine structure and principles, and has mastered the precise manufacturing technology. We control the accuracy of each component, and ensure all combinations run smoothly. Due to this, our computerized jacquard loom maintains a stable operation status at higher production speeds, and avoids yarn jumping, as well as improves the output and finished product rate.
