Narrow Fabric Weaving System

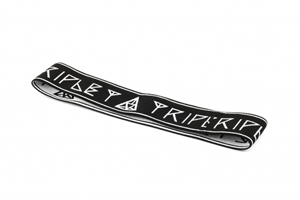

Do you want your woven tapes have a more exquisite appearance? Comtech’s computerized jacquard loom perfectly meets your requirements. Through a computer control, complex jacquard patterns and characters are easily woven on both elastic and non-elastic narrow fabrics. Simply input the program file via the USB port, and the loom will automatically create the expected pattern during the weaving process. Shown below are several standard jacquard looms we have developed according to market requirements for customers to choose from. If those shown do not meet your needs, please do not hesitate to contact us about customization services.

• Highly Efficient Jacquard Loom

  The highly efficient jacquard loom series uses an electromagnetic needle selection and magnetic selection unit driven by a solenoid valve for a complete needle selection process. The weaving efficiency and the finished fabric quality are both significantly improved in doing so. The production speed exceeds 1200r/minute, with the woven cloth featuring a delicate, smoother appearance to meet the production requirements for heavier woven fabrics with a higher density. Based on the number of latch hooks, we have developed the following ribbon weaving machines:

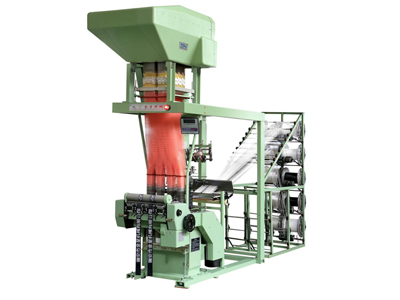

  • 1. KTNFM53-4/66-768 series
    2.
    3. pattern creation controlled by 768 warp yarns and 12 heald frames.
  • 1. KTNFM53-6/50-384 series
    2.
    3. pattern creation controlled by 384 warp yarns and 12 heald frames.

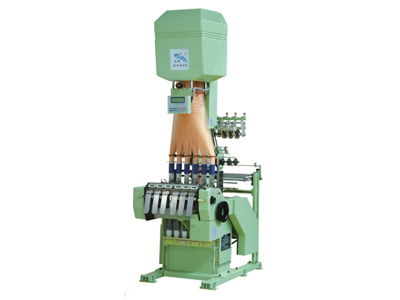

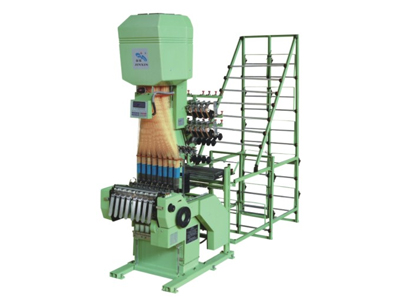

  • 1. KTNFM53-4/66-192 series
    2.
    3. pattern creation controlled by 192 warp yarns and 12 heald frames.

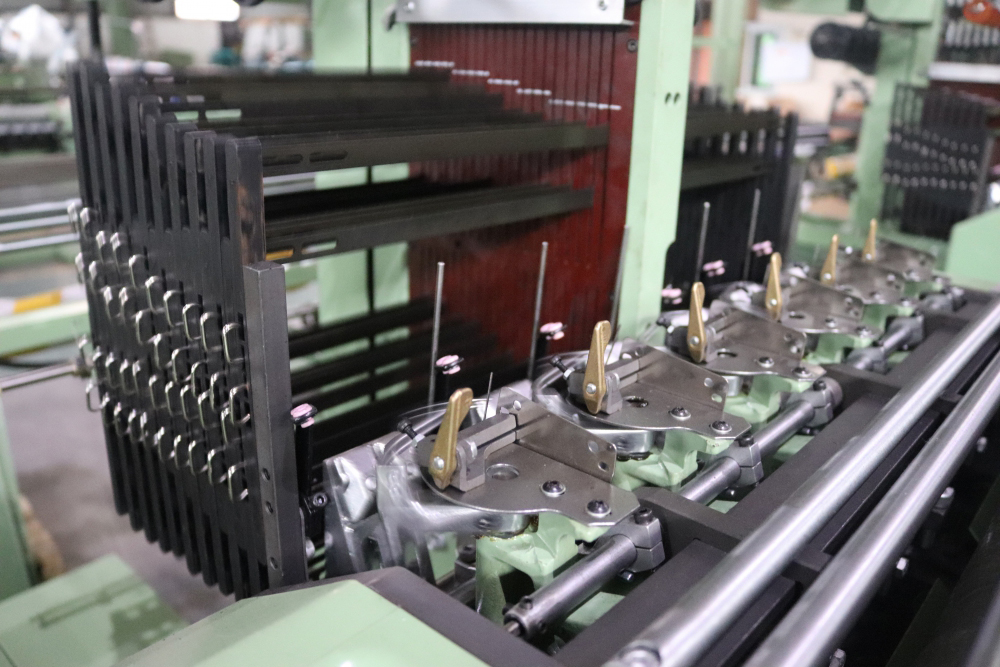

  The open heald frames improves the working stability and smoothness of woven tapes.

• Economical jacquard loom

  The economical computerized jacquard loom series utilizes computerized jacquard head and plastic jacquard modules. Since launched to the market in 2001, thousand of this series of ribbon weaving machines have been sold and its mature design has earned highly praise of our customers.

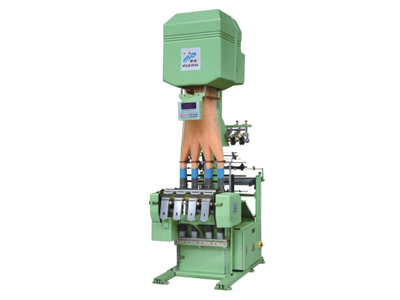

  • 1. KTNF53-4/66-320 series
    2.
    3. pattern creation controlled by 320 warp yarns and 12 heald frames.

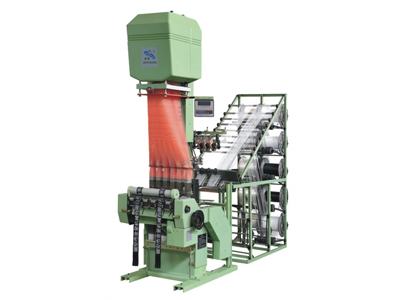

  • 1. KTNF53-6/42-384 series
    2.
    3. pattern creation controlled by 192 warp yarns and 12 heald frames.
  • 1. KTNFS53-2/175-1152 Series
    2.
    3. Narrow fabric looms are a type of weaving machinery essential in textile...

  The open heald frames improves the working stability and smoothness of woven tapes.

• Flexible machine speed on the control panel. Easy to operate.

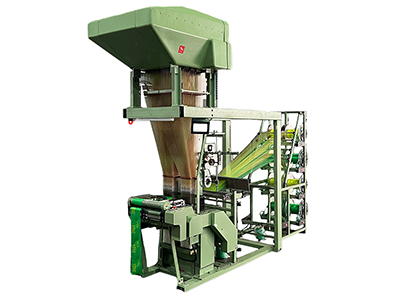

• The jacquard head is mounted on the middle bracket. It features a simple structure that is easy to install and dismount.
• The independent control cabinet features a built-in data system that makes it easy to program and design jacquard patterns. It’s also very easy to modify the patterns, users simply input the data via the keyboard, or read the prewritten pattern data through the USB port.
• 10,000 wefts memory capacity, compatible with various CAD file formats, including JC5, EP, UPT, and DAT.
• The operating screen displays real time production schedules and output of each shift. When the real output achieves the target output, the jacquard loom will automatically stop.
• The electronic ribbon weaving machine will record and export the preset production specifications at any time. The system will automatically back up all data in the event of a power outage.
• Wifi compatibility can be equipped upon request. Users can obtain production status and real time output through their cell phone or computer to allow for a better planning of the delivery cycle.
